Surface mounted urinal sensor HT-MX05d

HT-MX05d

1. Intelligent water-saving: Adopting intelligent selection of single and double stage flushing methods, the sensor can intelligently control the flushing according to the frequency of use of the urinal, more effectively avoiding water resource waste.
2. Anti odor design: Set to automatically flush water once every 24 hours when no one is using it, to prevent the stored water in the trap from drying up and causing odor to escape.
3. Convenient and hygienic: The flushing inside the bucket is completed by sensors, without the need for manual operation. The flushing is thorough and does not leave any odor, ensuring clean indoor air and preventing bacterial transmission.
4. Production process: brass precision casting, surface chrome plating treatment, permanent gloss preservation; Smooth curve design, beautiful and generous.

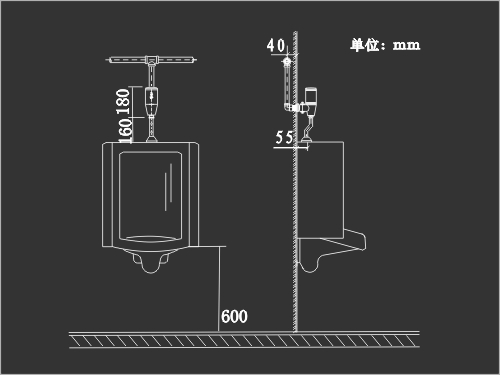

5. Installation characteristics: The open wall installation design is particularly suitable for renovation projects or installation on thin walls.
6. Sensitivity adjustable: The sensing sensitivity (range) can be adjusted according to different usage environments.
7. Intelligent power-saving: adopting digital technology, ultra-low energy consumption (using 4 No. 5 alkaline batteries, static current ≤ 60) μ A) .
8. Easy maintenance: External water flow regulator and filter (non professionals can easily clean the filter screen regularly).
9. Weak current prompt: Equipped with a battery replacement prompt function, the indicator light remains on when the battery is low, indicating the need to replace the battery.
10. Applicable places: high-end hotels, hotels, office buildings, airports and other public places

Technical parameters:

型号/TypeHT- MX05d(直流/DC)
外形尺寸180×126×63mm
给水口径/Water Supply Pipe DiaDN15
适用水压/Water Pressure Range0.05~0.6MPa
电源电压/VoltageDC6V
输出电压/Outlet VoltageDC6V(脉冲/Spark)
消耗电力/Power Consumption四节5#碱性电池,200人次/天可持续1年以上
/4pcs AA batteries lasts over 1 years by 200 times per day
感应距离/Sensor Distance(以白板为基准)25~100CM任意可调/ Adjustment Is Available
使用环境温度/Environment Temperature0~45 ℃
使用环境湿度/Environment HumidityLess 95%RH以下
