Induction squatting toilet HT-AD12 HT-AD12d

HT-AD12

1. Intelligent water-saving: Adopting intelligent selection of single and double stage flushing methods, the sensor can intelligently control the flushing according to the frequency of use of the urinal, more effectively avoiding water resource waste.
2. Anti odor design: Set to automatically flush water once every 24 hours when no one is using it, to prevent the stored water in the trap from drying up and causing odor to escape.
3. Special function: Equipped with hydraulic hand flushing function, it can be easily flushed even without electricity.
4. Convenient and hygienic: use without contact, avoid cross infection of bacteria in public restrooms, clean and hygienic.
5. Production process: Made of stainless steel material, with smooth lines, beautiful and elegant appearance, and durable durability.
6. Intelligent power-saving: adopting digital technology, ultra-low energy consumption (DC type products use 4 No. 5 alkaline batteries, static current ≤ 60) μ A) .
7. Sensitivity adjustable: The sensing sensitivity (range) can be adjusted according to different usage environments.
8. Easy maintenance: built-in filter (non professionals can easily clean the filter screen regularly).
9. Weak current prompt: DC type products are equipped with a battery replacement prompt function. When the battery energy is low (the indicator light is always on), it prompts to replace the battery in a timely manner.
10. Applicable places: high-end hotels, hotels, office buildings, airports and other public places.

Technical parameters:

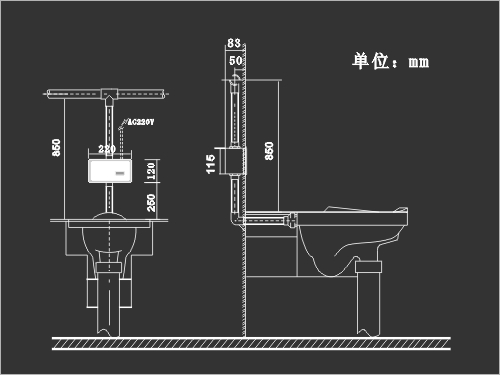

HT-AD12

型号/TypeHT-AD12(exchange/AC)
外形尺寸220×120×80mm
给水口径/Water Supply Pipe Dia≥DN 25
适用水压/Water Pressure Range0.07 (during flow)~0.6MPa
电源电压/VoltageAC 180~240V/50HZ
输出电压/Outlet VoltageAC 12V
消耗电力/Power ConsumptionStatic ≤ 1VA Dynamic/Dynamic ≤ 6VA
感应距离/Sensor Distance(以白板为基准)25-120CM adjustable/Adjustment Is Available
使用环境温度/Environment Temperature0~45 ℃
使用环境湿度/Environment Humidity

Less than 95% RH

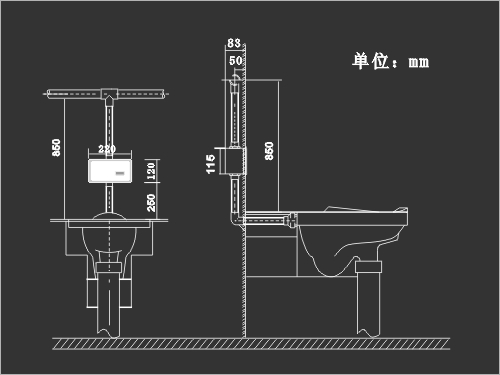

HT-AD12d

型号/TypeHT-AD12d(direct-current/DC)
外形尺寸220×120×80mm
给水口径/Water Supply Pipe Dia≥DN25
适用水压/Water Pressure Range0.07(When flowing)~0.6MPa
电源电压/VoltageDC6V
输出电压/Outlet VoltageDC6V(pulse/Spark)
消耗电力/Power ConsumptionFour 5 # alkaline batteries, 200 person times/day, sustainable for more than 1 year/4pcs AA batteries lasts over 1 years by 200 times per day
感应距离/Sensor Distance(以白板为基准)25~100CM任意可调/ Adjustment Is Available
使用环境温度/Environment Temperature0~45 ℃
使用环境湿度/Environment Humidity

Less 95%RH以下
